Dependency View

The Dependency View provides an interactive graph visualization of table dependencies in your ClickHouse database. It helps you understand how tables relate to each other, track data lineage, and identify dependencies for materialized views, views, and other database objects.

Overview

The Dependency View automatically analyzes your ClickHouse schema to build a comprehensive dependency graph showing:

Table Dependencies: Which tables depend on other tables
Materialized View Dependencies: Relationships between materialized views and their source tables
View Dependencies: Dependencies for regular views
Upstream Dependencies: Tables that a specific table depends on
Downstream Dependencies: Tables that depend on a specific table
Interactive Navigation: Click on nodes to view detailed table information

Example

The following example demonstrates a database dependency graph visualization.

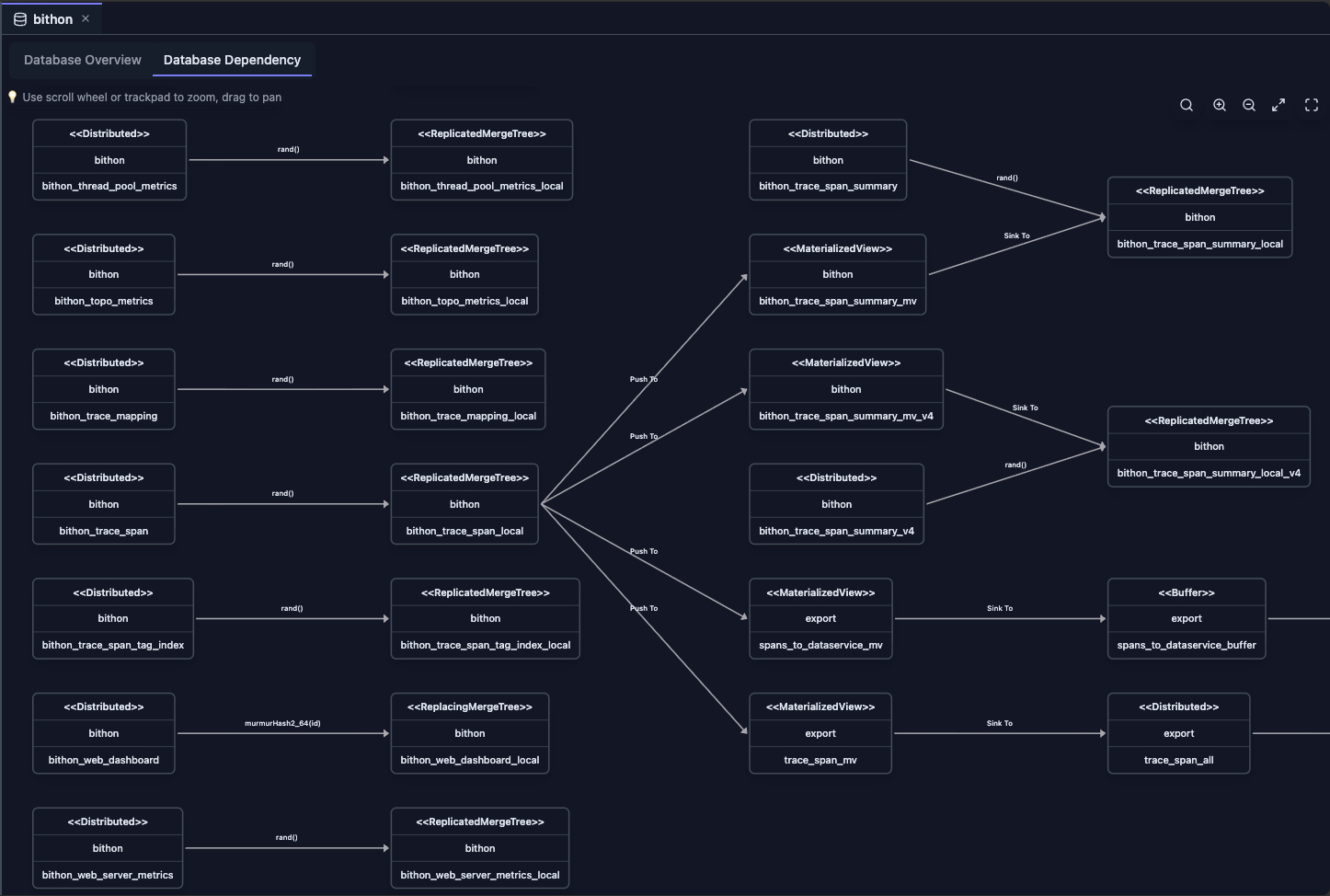

Dependency View graph visualization showing table relationships including distributed tables, local tables, Materialized Views with source and target connections, and edge labels indicating sharding keys

The dependency graph visualizes the following relationships:

Distributed Table Connections: Shows the relationship between each distributed table and its corresponding local table
Materialized View Dependencies: Displays source and target tables for materialized views, showing data flow direction
Table Representation: Each table is represented by a rectangle using a UML class diagram style for easy recognition
Sharding Key Information: Edge labels between distributed tables and local tables display the sharding key, allowing you to quickly identify whether the distributed table uses random sharding or specific column-based sharding
Materialized View Data Flow:
- Incoming Edge (labeled as Push To): Represents the source table where data originates
- Outgoing Edge (labeled as Sink to): Represents the target table where processed data is written
Interactive Details: Clicking on any table node displays the complete DDL (Data Definition Language) statement in the right panel, providing full table structure information

Accessing the Dependency View

The Dependency View is accessible from two locations in ClickHouse Console, each providing a different perspective on table dependencies:

From Database Tab

Open Database Tab: Click on a database name in the Schema Explorer
Select Dependency Tab: Click on the "Database Dependency" tab
View Graph: The dependency graph for all tables in the database is displayed, showing the complete dependency network within the database

From Table Tab

Open Table Tab: Click on a table name in the Schema Explorer
Select Dependencies Tab: Click on the "Dependencies" tab
View Focused Graph: The dependency graph is filtered to show only dependencies related to the selected table, providing a focused view of upstream and downstream relationships

Features

Interactive Graph Visualization

The dependency graph displays:

Nodes: Represent tables, materialized views, and other database table objects
Edges: Represent dependency relationships (arrows show direction)
Node Categories: Different colors or styles for different table types
Zoom and Pan: Navigate large dependency graphs easily
Node Highlighting: Hover or click nodes to see details

Upstream and Downstream Analysis

When viewing dependencies for a specific table:

Upstream Dependencies: Shows all tables that the selected table depends on (what feeds into it)
Downstream Dependencies: Shows all tables that depend on the selected table (what it feeds into)
Complete Context: Includes both upstream and downstream in a single view

Table Details Panel

Click on any node in the graph to open a detailed panel showing:

Table Metadata: Database, table name, engine type
Table Query: The CREATE TABLE statement
Dependencies: List of tables this table depends on
Metadata Information: Last modification time and other metadata

Use Cases

Understanding Data Lineage

Track Data Flow: See how data flows from source tables to materialized views
Impact Analysis: Understand what will be affected if you modify a table
Documentation: Visualize your database architecture

Schema Refactoring

Safe Changes: Identify all dependencies before modifying or dropping tables
Migration Planning: Understand relationships when restructuring schemas
Risk Assessment: See downstream impact of schema changes

Performance Optimization

Bottleneck Identification: Find tables with many downstream dependencies
Optimization Targets: Identify frequently used tables that might benefit from optimization
Materialized View Analysis: Understand materialized view dependencies for optimization

Troubleshooting

Error Investigation: Trace dependencies when queries fail
Data Quality: Understand data lineage for quality issues
Debugging: Visualize relationships when debugging complex queries

Zoom Controls

Zoom In: Use mouse wheel or zoom controls
Zoom Out: Scroll out or use zoom controls
Fit to View: Automatically adjust to show all nodes

Node Interaction

Click Node: Opens detailed table information panel
Hover: Highlights connected edges
Select: Focuses on specific table dependencies

Panel Management

Resize Panel: Drag the panel border to adjust size
Close Panel: Click the close button to hide the panel
Panel Content: View table metadata, query, and dependencies

Limitations

When using the Dependency View, consider the following limitations:

System Tables: Some system tables may not show dependencies correctly, as they have special structures and relationships
Kafka Tables: Kafka engine tables may have limited dependency information, as their dependencies are based on external Kafka topics rather than database objects
External Tables: URL and other external table engines may not show dependencies, as they reference external resources rather than database objects
Complex Queries: Very complex CREATE TABLE queries with nested expressions or advanced features may not parse all dependencies correctly
Performance: Large databases with many tables may take time to build the dependency graph, especially when analyzing complex relationships
Real-time Updates: Dependency graph reflects schema at the time of loading and does not automatically update when schema changes occur; refresh the view after making schema modifications

Best Practices

Regular Updates

Refresh After Changes: Refresh the dependency view after schema changes
Monitor Changes: Use dependency view to track schema evolution
Documentation: Use dependency graphs for architecture documentation

Performance Considerations

Large Databases: For databases with many tables, consider viewing dependencies for specific tables
Caching: Dependency data is cached for performance
Selective Viewing: Use table-specific dependency view for focused analysis

Integration with Other Features

Schema Explorer: Navigate to tables from the dependency graph
Table Tab: View detailed table information from dependency nodes
Database Tab: Access database-level dependency overview
Query Editor: Use dependency information when writing queries
